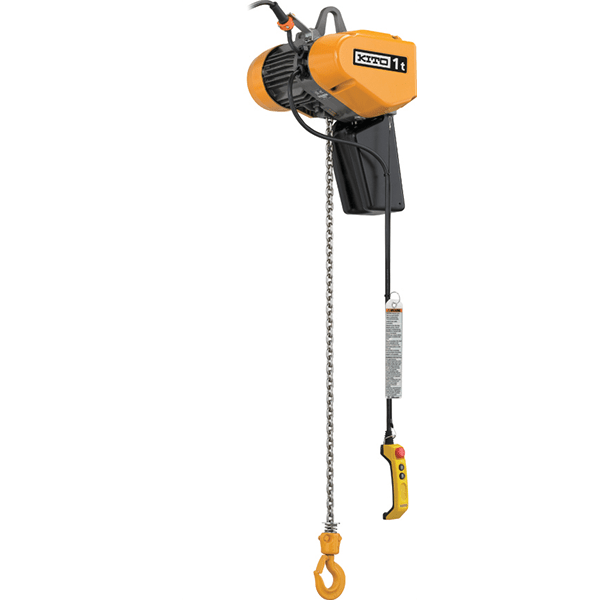

Electric Hoist EQ Dual Speed 125kg – 1T
Features
- Dual speed with inverter.
- Adjustable speed inverter.
- Counter hour meter.
- IP55 dust and water jet proof body.
- 40/20% duty rating.
- No load, high speed feature.
- Standard 3m and 6m lifts.
- The EQ Series Electric Chain Hoist from Kito is economical, lightweight and compact. It incorporates the quality and safety features expected of a Kito hoist.
Specifications
| Capacity | Part No. | Model | Standard Lift (m) |
Lift Speed (m/min) |
Headroom (mm) |
Load Chain dia (mm) x falls |
Weight (kg) |
| 125kg | 47106 | EQ001IS | 3 | 17-2.8 | 420 | 5.6×1 | 30 |
| 250kg | 47107 | EQ003IS | 3 | 10-1.7 | 420 | 5.6×1 | 30 |
| 500kg | 47108 | EQ005IS | 3 | 7.6-1.3 | 440 | 5.6×1 | 32 |
| 1000kg | 47109 | EQ010IS | 3 | 7.1-1.2 | 490 | 7.1×1 | 42 |
| 125kg | 47190 | EQ001IS | 6 | 17-2.8 | 420 | 5.6×1 | 32 |
| 250kg | 47191 | EQ003IS | 6 | 10-1.7 | 420 | 5.6×1 | 32 |
| 500kg | 47192 | EQ005IS | 6 | 7.6-1.3 | 440 | 5.6×1 | 34 |
| 1000kg | 47193 | EQ010IS | 6 | 7.1-1.2 | 490 | 7.1×1 | 46 |
Applications
Mining, construction, engineering, entertainment and manufacturing.
