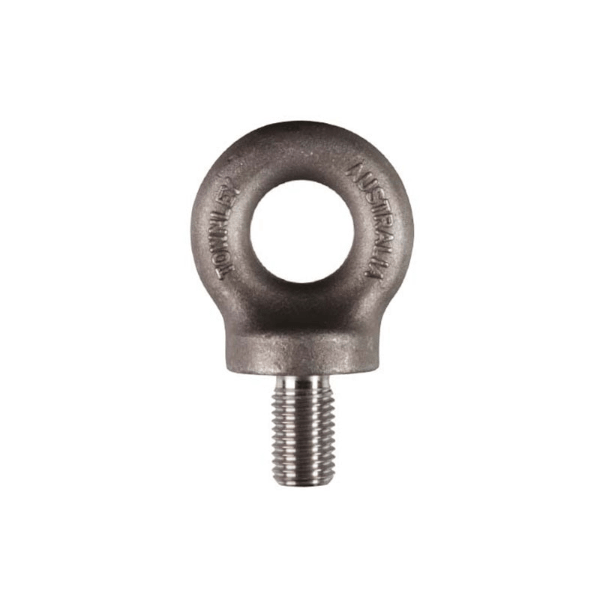

Eye Bolts Grade 4 Ìmperial

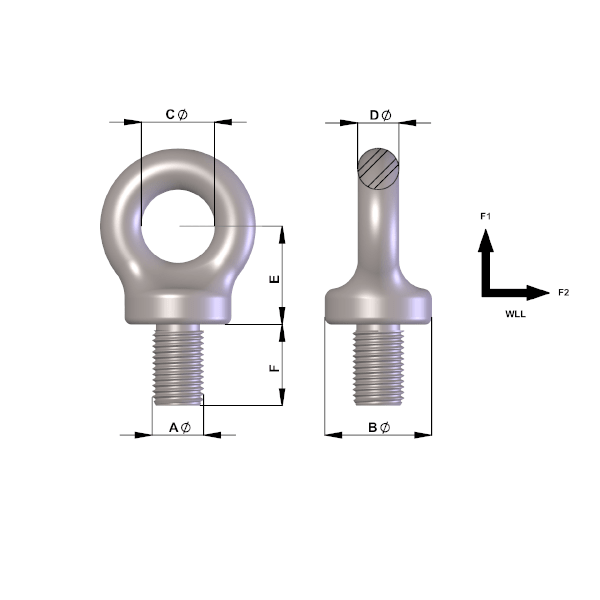

eye Bolts Grade4 drawing

Eye Bolts Grade 4 Metric

Features

6:1 Safety Factor
Manufactured using only heat certified Australian Steel

Available on Request:

Special Thread forms
Hot Dip Galvanizing, Zinc Passivating, Zinc Plating, Chrome Plating, Powder Coating

Call Us: 07 3205 7000

Specifications

Specifications

Type	WLL (t)	WLL (t)	Size	Thread Pitch	B	C	D	E	F	Weight (kg)
	Transverse	Axial
	F2	F1
Metric Coarse	N/A	N/A	M06	1	21	14	9	19	17	0.06
Metric Coarse	N/A	N/A	M08	1.25	21	14	9	19	17	0.06
Metric Coarse	0.06	0.25	M10	1.5	21	14	9	19	17	0.06
Metric Coarse	0.1	0.4	M12	1.75	28	18	11	24	22	0.15
Metric Coarse	0.1	0.4	M14	2	35	24	15	31	27	0.28
Metric Coarse	0.2	0.8	M16	2	35	24	15	31	27	0.28
Metric Coarse	0.2	0.8	M18	2.5	42	29	16	35	40	0.46
Metric Coarse	0.4	1.6	M20	2.5	42	29	16	35	40	0.46
Metric Coarse	0.5	2	M22	2.5	50	33	20	41	41	0.85
Metric Coarse	0.62	2.5	M24	3	57	38	22	48	42	1.1
Metric Coarse	0.62	2.5	M27	3	71	48	28	65	52	2.1
Metric Coarse	1	4	M30	3.5	71	48	28	65	52	2.1
Metric Coarse	1.25	5	M33	3.5	71	48	28	65	52	2.2
Metric Coarse	1.57	6.3	M36	4	86	54	33	73	63	3.7
Metric Coarse	1.75	7	M39	4	86	54	33	73	64	3.7
Metric Coarse	2	8	M42	4.5	102	68	40	90	79	6.3
Metric Coarse	2.5	10	M48	5	115	76	49	99	89	9.5
Metric Coarse	3.7	15	M56	5.5	143	97	56	124	116	19.5
Metric Coarse	5	20	M64	6	143	97	56	124	116	19.5
Metric Coarse	6.2	25	M72	6	163	106	66	140	125	29
Metric Coarse	7.5	30	M76	6	163	106	66	140	125	29
Metric Fine	0.06	0.25	M10	1.25	21	14	9	19	18	0.06
Metric Fine	0.1	0.4	M12	1.5	28	19	11	24	23	0.15
Metric Fine	0.2	0.8	M16	1.5	35	24	15	31	30	0.28
Metric Fine	0.4	1.6	M20	1.5	42	29	16	35	40	0.46
Metric Fine	0.5	2	M22	1.5	50	33	20	41	41	0.85
Metric Fine	0.62	2.5	M24	2	57	38	22	48	46	1.1
Metric Fine	1	4	M30	2	71	48	28	65	50	2.1
Metric Fine	1.25	5	M33	2	71	48	28	65	50	2.2
Metric Fine	1.57	6.3	M36	2	86	55	33	73	66	3.7
Metric Fine	1.75	7	M39	2	86	55	33	73	66	3.7
Metric Fine	2	8	M42	2	102	66	40	90	77	6.3
Metric Fine	2.5	10	M48	3	115	72	49	99	89	9.5
Metric Fine	3.7	15	M56	4	143	95	56	124	111	19.5
Metric Fine	5	20	M64	4	143	95	56	124	111	19.5
Metric Fine	7.5	30	M76	4	163	106	66	140	125	29
