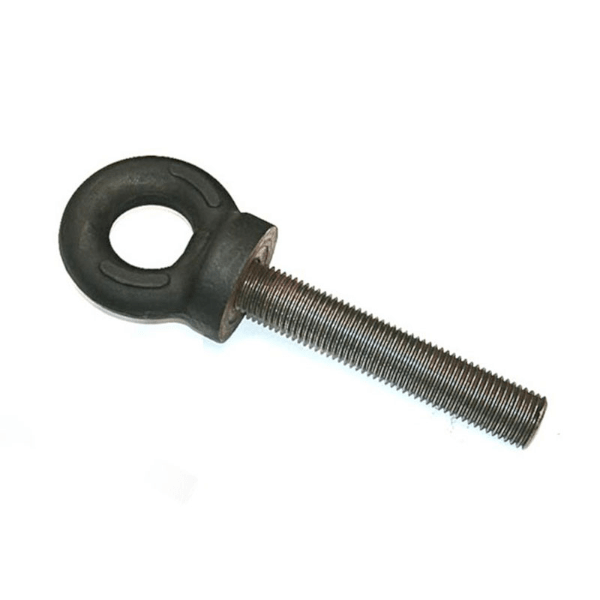

Eye Bolts Grade-4 Long Shank
Features
- 6:1 Safety Factor
- Manufactured using only heat certified Australian Steel
Available on Request:
- Special Thread Forms
- Hot Dip Galvanizing, Zinc Passivating, Zinc Plating, Chrome Plating, Powder Coating
- Testing and Certification
Specifications

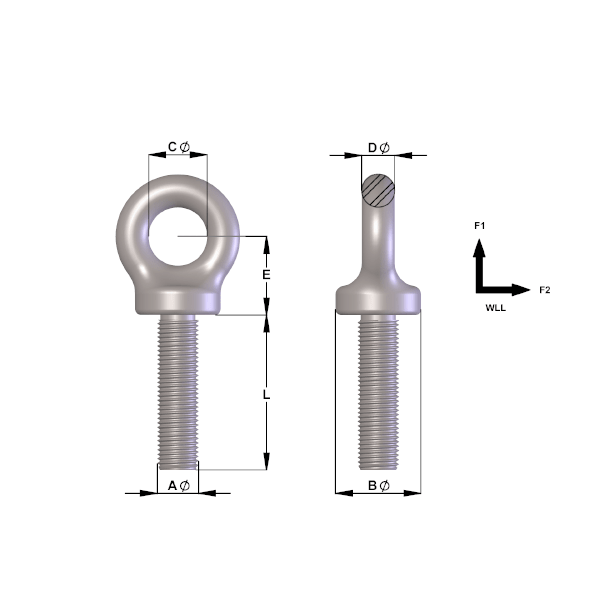

| Type | Working Load Limit (t) | Size | Thread Pitch | B | C | D | E | L | Product Code |
| Metric Coarse | 0.25 | M10 | 1.5 | 28 | 24 | 11 | 25 | As Required | EBLSM10 |
| Metric Coarse | 0.4 | M12 | 1.75 | 28 | 24 | 11 | 25 | As Required | EBLSM12 |
| Metric Coarse | 0.8 | M16 | 2 | 34 | 28 | 16 | 40 | As Required | EBLSM16 |
| Metric Coarse | 1.6 | M20 | 2.5 | 44 | 32 | 20 | 44 | As Required | EBLSM20 |
| Metric Coarse | 2 | M22 | 2.5 | 50 | 33 | 20 | 44 | As Required | EBLSM22 |
| Metric Coarse | 2.5 | M24 | 3 | 57 | 38 | 22 | 51 | As Required | EBLSM24 |
| Metric Coarse | 2.5 | M27 | 3 | 71 | 48 | 28 | 65 | As Required | EBLSM27 |
| Metric Coarse | 4 | M30 | 3.5 | 71 | 48 | 28 | 65 | As Required | EBLSM30 |
| Metric Coarse | 5 | M33 | 3.5 | 71 | 48 | 28 | 65 | As Required | EBLSM33 |
| Metric Coarse | 6.3 | M36 | 4 | 86 | 55 | 33 | 73 | As Required | EBLSM36 |
| Metric Coarse | 7 | M39 | 4 | 86 | 55 | 33 | 73 | As Required | EBLSM39 |
| Metric Coarse | 8 | M42 | 4.5 | 102 | 66 | 40 | 90 | As Required | EBLSM42 |
| Metric Coarse | 10 | M48 | 5 | 115 | 72 | 49 | 99 | As Required | EBLSM48 |
| Metric Coarse | 15 | M56 | 5.5 | 143 | 95 | 56 | 124 | As Required | EBLSM56 |
| Metric Coarse | 20 | M64 | 6 | 143 | 95 | 56 | 124 | As Required | EBLSM64 |
| Metric Coarse | 25 | M72 | 6 | 163 | 106 | 66 | 140 | As Required | EBLSM72 |
| Metric Coarse | 30 | M76 | 6 | 163 | 106 | 66 | 140 | As Required | EBLSM76 |
| Imperial BSW | 0.25 | 3/8″ | 16 | 28 | 24 | 11 | 25 | As Required | EBLSW375 |
| Imperial BSW | 0.4 | 1/2″ | 13 | 28 | 24 | 11 | 25 | As Required | EBLSW500 |
| Imperial BSW | 0.8 | 5/8″ | 11 | 34 | 28 | 16 | 40 | As Required | EBLSW625 |
| Imperial BSW | 1.6 | 3/4″ | 10 | 44 | 32 | 20 | 44 | As Required | EBLSW750 |
| Imperial BSW | 2 | 7/8″ | 9 | 50 | 33 | 20 | 44 | As Required | EBLSW875 |
| Imperial BSW | 2.5 | 1″ | 8 | 57 | 38 | 22 | 51 | As Required | EBLSW1000 |
| Imperial BSW | 5 | 1 1/4″ | 7 | 71 | 48 | 28 | 65 | As Required | EBLSW1250 |
| Imperial BSW | 7 | 1 1/2″ | 6 | 86 | 55 | 33 | 73 | As Required | EBLSW1500 |
| Imperial UNC | 0.25 | 3/8″ | 16 | 28 | 24 | 11 | 25 | As Required | EBLSU375 |
| Imperial UNC | 0.4 | 1/2″ | 13 | 28 | 24 | 11 | 25 | As Required | EBLSU500 |
| Imperial UNC | 0.8 | 5/8″ | 11 | 34 | 28 | 16 | 40 | As Required | EBLSU625 |
| Imperial UNC | 1.6 | 3/4″ | 10 | 44 | 32 | 20 | 44 | As Required | EBLSU750 |
| Imperial UNC | 2 | 7/8″ | 9 | 50 | 33 | 20 | 44 | As Required | EBLSU875 |
| Imperial UNC | 2.5 | 1″ | 8 | 57 | 38 | 22 | 51 | As Required | EBLSU1000 |
| Imperial UNC | 5 | 1 1/4″ | 7 | 71 | 48 | 28 | 65 | As Required | EBLSU1250 |
| Imperial UNC | 7 | 1 1/2″ | 6 | 86 | 55 | 33 | 73 | As Required | EBLSU1500 |
