610mm Fixed Davit

610mm Fixed Davit – Manufacturer Part Number: SPXT24

Easy and safe access into confined spaces this davit is easily positioned from 385mm, 450mm and 601mm

Fixed Base and demountable davit system.
Maximum reach from the mast of 610mm or 24″.
Suitable for use in a single location where repeated access is required.
Davit mast and arm easily removed for storage when not in use.
Alternatively several bases can be secured in planned locations with a single davit arm and mast assembly.
Exceeds AS/NZS 5532, CSA, ANSI, OSHA, CSST and CE Standards.

The 610mm Fixed Davit (confined space equipment) is an adjustable davit system developed to allow workers greater versatility, with the mast adapter permanently fixed to a structure and the davit arm and mast moved around as required.

Ensuring easy and safe access into a wide variety of confined spaces these davits are easily positioned with reaches to 610mm. The davit’s versatility offers a solution where other conventional systems are impractical. With a safety factor of 10:1 and a working load limit of 164kg at any extension the davits meet or exceeds AS5532, CSA, ANSI, OSHA, CSST and CE Standards.

Get A quote

Call Us: 07 3205 7000

SYSTEM COMPONENTS

XT-IN2210 – 610mm (24″) davit arm

Equipped with a bracket for the self-retracting lifeline and winch to ease access to confined spaces. To be used with mast XTIN2003 and an appropriate base. Extendable from 381 to 610mm. Equipped with a 22 kN anchor point.
Material: Aluminum
Dimensions: L 1436-1896mm x W 148mm x H 286mm
Weight: 15 kg

XT-IN2003 – Mast

To be used with davit arm XT-IN2210 and a suitable adapter.
Material: Aluminum
Dimensions: Ø 76mm x H 1145mm
Weight: 10 kg

DAVIT MAST

XT-IN2005 – Floor adapter for concrete and steel

To be used with mast XTIN2003 and 610mm davit arm XTIN2210 on concrete or steel. Increases the range of the system by installing it near the edge of the structure. Anchor bolts not included.*Allowable working angle.
Material: AISI 304 stainless steel
Dimensions: L 318mm x W 203mm x H 235 mm
Weight: 10 kg

DAVIT BASE

CUSTOMISED OPTIONS FOR YOUR DAVIT

DAVIT MAST EXTENSIONS

Extend the height of the mast XTIN2003 using

SPXTIN2003 Standard Mast
SPXTIN2044 381mm Mast Extension (9 kg)
SPXTIN2109 457mm Mast Extension (10 kg)
SPXTIN2045 610mm Mast Extension (11 kg)

This unique, adjustable davit system was developed to allow workers greater versatility, with the mast adapter permanently fixed
to a structure and the davit arm and mast moved around as required. Ensuring easy and safe access into a wide variety of confined spaces
this davit is easily positioned from 381mm, 457mm and 610mm. The davit’s versatility offers a solution where other conventional systems are impracticaL.

DAVIT MAST EXTENSIONS

DAVIT BASE OPTIONS

Floor Adapter

Exterior Corner Sleeve

Concrete Fresh

Centre Mount

Interior Corner Sleeve

Offset Wall Adapter

Sleeve Adapter

Wall Adaptor

Wall Shoring Adapter

Adjustable Wall Adapter

RECOVERY INTERTIA REELS

This SpanSet® Saverline series are fall arrest devices with a recovery mechanism. Should the user fall and need recovering, the winding handle can be used by
a third party to rescue them quickly and safely. The unit is completely closed and has no wearing parts. All parts are made from stainless steel or aluminium
and the lifelines have an aluminium double action hook with load indicator. Different steel cable lengths ensure that a suitable device is available for every
application. All devices comply with AS/NZS 1891.3.

IKAR Rescue Recovery Winches

Code	Description	Wt	Len	Lifeline	Case	Conn
2002363 – HRA 12	SRLR STU A S 12 STA – 12m Block	7kg	12m	Galv Steel	Alum	2002206
2002380 – HRA 18	SRLR STU A S 18 STA – 18m Block	11.5kg	18m	Galv Steel	Alum	2002206
2002381 – HRA 24	SRLR STU A S 24 STA – 24m Block	16kg	24m	Galv Steel	Alum	2002206
2002382 – HRA 33	SRLR STU A S 30 STA – 30m Block	21kg	30m	Galv Steel	Alum	2002206
2002383 – HRA 42	SRLR STU A S 42 STA – 42m Block	40kg	42m	Galv Steel	Alum	2002206
2002384 – HRA 65	SRLR STU A S 65 STA – 65m Block	43kg	65m	Galv Steel	Alum	2002206

PERSONAL & MATERIAL WINCHES

The SpanSet® Winch Model SVLWB is designed for lifting and lowering materials and small equipment, in a wide variety of workplaces. It is part of the
SpanSet® confined space, fall protection and rescue equipment range.
The SVLWB Winch quickly and easily attaches to our Tripods and Davits, via a heavy-duty mounting bracket equipped with 2 Quick-Release locking pins. The
winch is equipped with a locking swivel double action snap hook which is swagged to the 3/16” diameter wire rope (rope is standard in galvanised steel and
can be supplied in stainless steel for added corrosion protection).
The winch is also rated for lifting or lowering personnel, however when lifting personnel, it is essential that a secondary means of fall protection is also used
(i.e. SpanSet Fall Arrest Block).

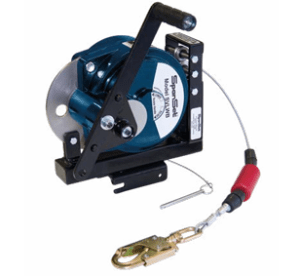

Personal & Material Winch

Code	Description	Weight	Cable Material	Max/Min Work Load	Mechanical Advantage
SVLWB-20	20m material/personnel winch	14kg	Galvanised Steel	150kg/12kg	22:1
SVLWB-30	30m material/personnel winch	15.5kg	Galvanised Steel	150kg/12kg	22:1
SVLWB-45	45m material/personnel winch	18kg	Galvanised Steel	140kg/15kg	22:1
SVLWB-60	60m material/personnel winch	19.5kg	Galvanised Steel	140kg/15kg	22:1
