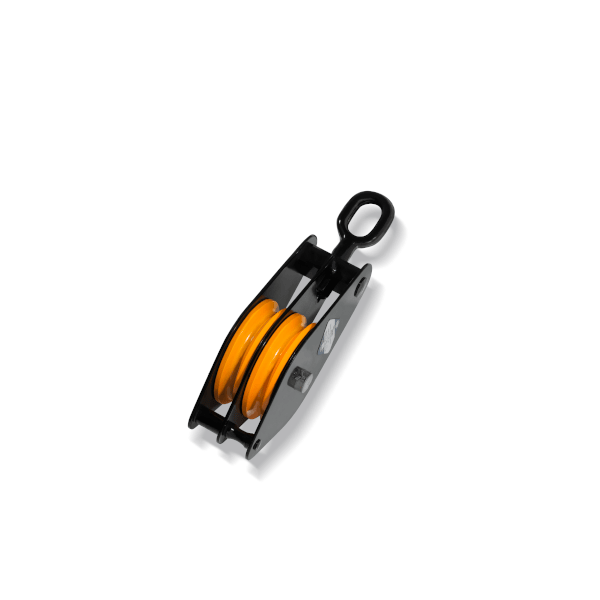

Double Sheave Block Wire Rope
Features
- Fully interchangeable sheaves.
- Supplied with either drop-forged swivel hooks or eyes.
- Beckets are standard on all single and double blocks.
- Bronze bushes and safety latches are also standard across the range.
Specifications
|
Sheave dia (mm) |
63 |
75 |
100 |
125 |
150 |
200 |
|
Capacity |
250kg |
250kg |
750kg |
1t |
1.5t |
3t |
|
Manilla Rope dia (mm) |
10 |
12 |
16 |
20 |
24 |
32 |
|
Hook Suspended – Part No |
45619 |
45636 |
45669 |
45703 |
45720 |
– |
|
Eye Suspended – Part No |
45611 |
45628 |
45661 |
45695 |
45712 |
45746 |
|
Wire Rope dia. (mm) |
5 |
6 |
8 |
10 |
12 |
16 |
|
Hook Suspended – Part No |
45620 |
45637 |
45670 |
45704 |
45721 |
45755 |
|
Eye Suspended – Part No |
45612 |
45629 |
45662 |
45696 |
45713 |
45747 |
Applications
- Block and tackle
- General pulling
- Ideal for lifting, moving, manoeuvering, aligning loads
