ERGO Heavy Duty Lanyards

ERGO Fall Arrest Lanyards – Fall Arrest, energy absorbing lanyards with steel fittings

Description
Specifications
Features & Benefits

ERGO Heavy Duty Lanyards

ERGO energy absorbing lanyards are designed to minimise the forces endured by an operator should a fall occur. All SpanSet lanyards feature back up straps should the tear web be fully deployed and all are certified to AS/NZS 1891.1. With heavy duty, alloy steel, corrosion resistant components and high tenacity polyester webbing they offer outstanding safety and value
to this range.

Specifications

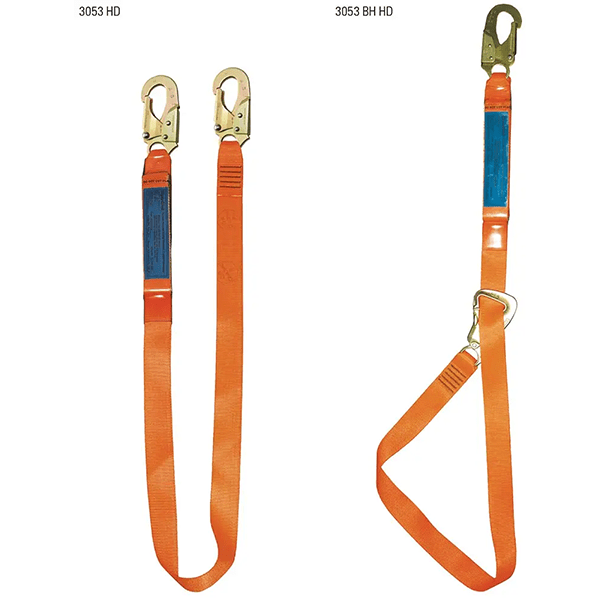

Code	Type	Material	Length	Fitting at Shock Absorber	Fitting at Free End	Weight
3053 HD	Single Leg	Webbing	1.8m	H1HD Trip Resistant Snap Hook	H1HD Trip Resistant Snap Hook	1240g
3055 HD	Single Leg	Webbing	1.8m	H1HD Trip Resistant Snap Hook	H3HD Scaffold Hook	1605g
3058 HD	Twin Leg	Webbing	1.8m	H1HD Trip Resistant Snap Hook	H3HD Scaffold Hook	2720g
3053 BH HD	Single Leg	Webbing	1.8m	H1HD Trip Resistant Snap Hook	N-3050 Back Hook	1365g
3053 HD	Single Leg	Elastic Webbing	1.8m	H1HD Trip Resistant Snap Hook	H1HD Trip Resistant Snap Hook	1265g
3055 HD	Single Leg	Elastic Webbing	1.8m	H1HD Trip Resistant Snap Hook	H3HD Scaffold Hook	1630g
3058 HD	Twin Leg	Elastic Webbing	1.8m	H1HD Trip Resistant Snap Hook	H3HD Scaffold Hook	2770g

Features & Benefits

Ergo Lanyard Diagram

1. Heavy duty alloy steel fittings
Robust and lightweight, offers genuine user acceptance and confidence with corrosion resistance, high quality feel, and smooth function.

2. Tear web energy absorber
Limits the forces to under 6kN should a fall occur as per Australian/New Zealand standards.

3. High tensile contrasted stitching
The high tensile computerised sew pattern give repeatable uniformity compared to manual sew patterns. The contrasting colour makes inspection easier.

4. Stowage loops on all twin lanyards
The need for an operator to avoid connecting an unused leg of a twin lanyard is critical. To avoid this, each SpanSet twin leg lanyard has clearly marked stowage points for unused lanyard legs. They are also rated in case of misuse.

5. Polyester webbing
High tenacity polyester webbing gives better value, strength and safety through longevity. Polyester is UV resistant and does not lose strength when it becomes wet. All this in a high visibility webbing that is soft and pliable to the touch.

6. Kernmantle Rescue Standard Rope
11mm kernmantle rope fully complies to AS 4142.3 with full length tracer tape and contrasting sheath over a white core. This allows an objective inspection criteria by highlighting the damaged sheath against the inner core and takes the guesswork and assumptions out of the inspection process.
