Flat Slings Endless
Flat Slings Endless

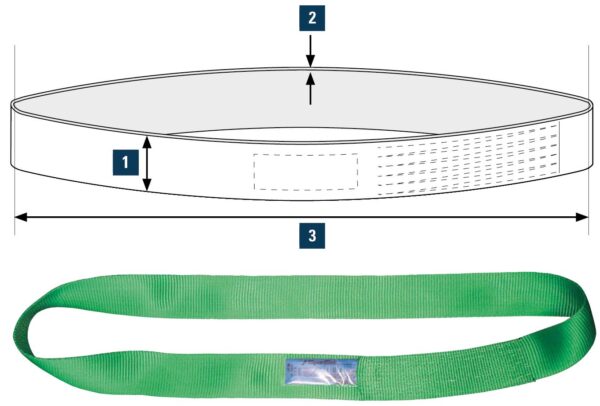

Endless flat slings are manufactured with hi-tech webbing for greater durability
Additional information
| Length | 1m, 2m, 3m, 4m, 5m, 6m |
|---|---|
| WLL | 250, 500, 1000, 2000, 3000, 4000, 5000, 6000, 8000, 10000 |
Specifications
Colour/ Code |
Rated WLL (kg) |
 Width (mm) |
 Thickness (mm) |
 Min Sling Length (mm) |
Min Pin Diameter (mm) |
Min Load Edge Diameter (mm) |
 D0150 |
250 | 25 | 2 | 300 | 2 | 6 |
| D0500 |
500 | 35 | 2 | 300 | 2 | 6 |
 D1000 |
1000 | 50 | 3 | 300 | 3 | 9 |
 D2000 |
2,000 | 75 | 4 | 400 | 4 | 12 |
 D3000 |
3,000 | 100 | 4 | 400 | 4 | 12 |
 D4000 |
4,000 | 140 | 4 | 500 | 4 | 12 |
 D5000 |
5,000 | 150 | 4 | 600 | 4 | 12 |
 D6000 |
6,000 | 180 | 4 | 600 | 4 | 12 |
 D8000 |
8,000 | 240 | 5 | 600 | 5 | 15 |
 D10000 |
10,000 | 300 | 5 | 700 | 5 | 15 |
| Colour/ Code | Rated WLL (kg) | 1 metre | 2 metre | 3 metre | 4 metre | 5 metre | 6 metre |
| D0150 |
250 | D0150-0x1.0 | D0150-0x2.0 | D0150-0x3.0 | D0150-0x4.0 | D0150-0x5.0 | D0150-0x6.0 |
| D0500 |
500 | D0500-0x1.0 | D0500-0x2.0 | D0500-0x3.0 | D0500-0x4.0 | D0500-0x5.0 | D0500-0x6.0 |
| D1000 |
1000 | D1000-0x1.0 | D1000-0x2.0 | D1000-0x3.0 | D1000-0x4.0 | D1000-0x5.0 | D1000-0x6.0 |
| D2000 |
2,000 | D2000-0x1.0 | D2000-0x2.0 | D2000-0x3.0 | D2000-0x4.0 | D2000-0x5.0 | D2000-0x6.0 |
| D3000 |
3,000 | D3000-0x1.0 | D3000-0x2.0 | D3000-0x3.0 | D3000-0x4.0 | D3000-0x5.0 | D3000-0x6.0 |
| D4000 |
4,000 | D4000-0x1.0 | D4000-0x2.0 | D4000-0x3.0 | D4000-0x4.0 | D4000-0x5.0 | D4000-0x6.0 |
| D5000 |
5,000 | D5000-0x1.0 | D5000-0x2.0 | D5000-0x3.0 | D5000-0x4.0 | D5000-0x5.0 | D5000-0x6.0 |
| D6000 |
6,000 | D6000-0x1.0 | D6000-0x2.0 | D6000-0x3.0 | D6000-0x4.0 | D6000-0x5.0 | D6000-0x6.0 |
| D8000 |
8,000 | D8000-0x1.0 | D8000-0x2.0 | D8000-0x3.0 | D8000-0x4.0 | D8000-0x5.0 | D8000-0x6.0 |
| D10000 |
10,000 | D10000-0x1.0 | D10000-0x2.0 | D10000-0x3.0 | D10000-0x4.0 | D10000-0x5.0 | D10000-0x6.0 |
| Colour/ Code | secutex Code Single Sided | Interior Width (mm) | Exterior Width (mm) | Exterior Height | Weight Per Run Metre |
| D1000 |
SF1-50 | 50 | 70 | 22 | 0.9 |
| D2000 |
SF1-75 | 75 | 95 | 22 | 1.3 |
| D3000 |
SF1-100 | 100 | 120 | 22 | 1.5 |
| D4000 |
SF1-150 | 150 | 170 | 22 | 2.1 |
| D5000 |
SF1-150 | 150 | 170 | 22 | 2.1 |
| D6000 |
SF1-200 | 200 | 200 | 35 | 2.7 |
| D8000 |
SF1-240 | 240 | 260 | 35 | 3.2 |
| D10000 |
SF1-300 | 300 | 325 | 35 | 4.0 |
| Colour/ Code | secutex Code Double Sided | Interior Width (mm) | Exterior Width (mm) | Exterior Height | Weight Per Run Metre |
| D1000 |
SF2-50 | 50 | 70 | 22 | 1.2 |
| D2000 |
SF2-75 | 75 | 95 | 22 | 1.8 |
| D3000 |
SF2-100 | 100 | 120 | 22 | 2.1 |
| D4000 |
SF2-150 | 150 | 160 | 22 | 3.0 |
| D5000 |
SF2-150 | 150 | 170 | 22 | 3.0 |
| D6000 |
SF2-200 | 200 | 200 | 35 | 3.3 |
| D8000 |
SF2-260 | 240 | 260 | 35 | 4.2 |
| D10000 |
SF2-325 | 300 | 325 | 35 | 6.0 |
| Colour/ Code | secutex Code Clip-On |
Interior Width (mm) |
Exterior Width (mm) |
Exterior Height |
Weight Per Run Metre |
| D1000 |
SC-50 | 50 | 70 | 22 | 1.1 |
| D2000 |
SC-75 | 75 | 95 | 22 | 1.6 |
| D3000 |
SC-100 | 100 | 120 | 22 | 1.8 |
| D4000 |
SC-150 | 150 | 170 | 22 | 2.6 |
| D5000 |
SC-150 | 150 | 170 | 22 | 2.6 |
| D6000 |
SC-200 | 200 | 200 | 35 | 3.3 |
| D8000 |
SC-240 | 240 | 260 | 35 | 4.2 |
 D10000 |
SC-300 | 300 | 325 | 35 | 6.0 |
