Forged Alloy Wide Body Shackle
Forged Alloy Wide Body Shackle Features
- Shackles are forged from alloy steel with alloy pin.
- Size and working load limit permanently shown on each shackle.
Forged Alloy Wide Body Shackle
- Shackles are forged from alloy steel with alloy pin.
- Size and working load limit permanently shown on each shackle.
- All shackles come with a batch code that links the product to it’s test certificate for tractability.
- 100% magnaflux crack detection.
- 20,000 cycle fatigue rated to 1.5 times working load limit

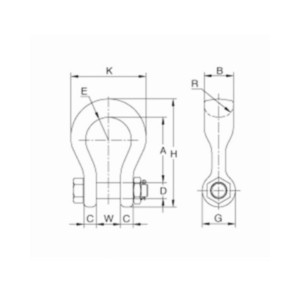

Specifications
| Part No. | Yoke Part No. | Nominal Size (mm) |
Working Load Limit (tonnes) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
G (mm) |
H (mm) |
K (mm) |
R (mm) |
W (mm) |
N.W (kg) |
| 41180 | 8-809-19 | 19 | 7 | 91 | 41 | 18 | 22 | 32 | 46 | 150 | 104 | 32 | 33 | 1.7 |
| 41181 | 8-809-26 | 26 | 12.5 | 118 | 54 | 23 | 29 | 41 | 61 | 194 | 140 | 35 | 44 | 3.8 |
| 41182 | 8-809-32 | 32 | 18 | 148 | 64 | 30 | 36 | 51 | 68 | 238 | 172 | 38 | 54 | 6.7 |
| 41183 | 8-809-38 | 38 | 30 | 176 | 80 | 35 | 45 | 64 | 89 | 289 | 216 | 45 | 60 | 12.5 |
Applications
- Used in lifting, agricultural, general industrial
- Ideal for applications involving lifting, moving, securing loads
