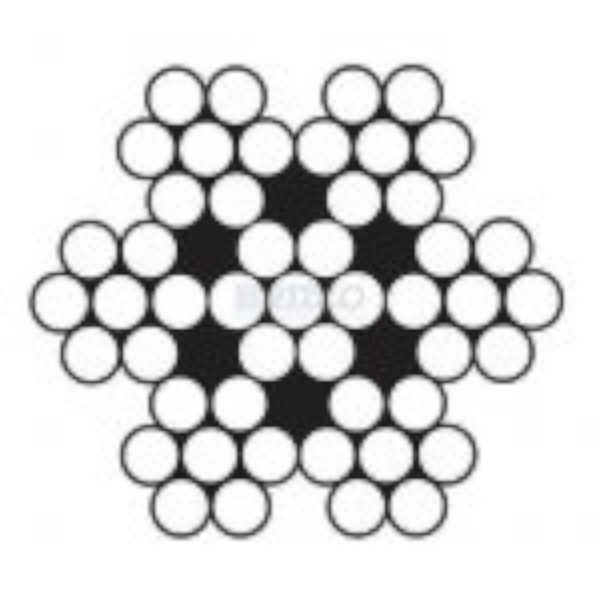

Galvanized Wire Rope 7×7 Steel Core G2070
Features
- Galvanized Wire Rope 7×7 Steel Core G2070 has a variety of uses such as wire rope slings, cable stockings and other applications where medium flexibility is required.
- When accompanied with our galvanized wire rope fittings or Talurit ferrules, wire rope applications are endless.
Specifications
CODE | DIA mm |
Construction | Grade | Core | WEIGHT (kg)/m |
B.L (kN) |
WR-15GAL77 | 1.5 | 7×7 | 2070 | Steel | 0.0865 | 2.00 |
WR-2GAL77 | 2 | 7×7 | 2070 | Steel | 0.0154 | 2.75 |
WR-25GAL77 | 2.5 | 7×7 | 2070 | Steel | 0.0250 | 4.29 |
WR-3GAL77 | 3 | 7×7 | 2070 | Steel | 0.0346 | 6.33 |
WR-4GAL77 | 4 | 7×7 | 2070 | Steel | 0.0614 | 11.30 |
