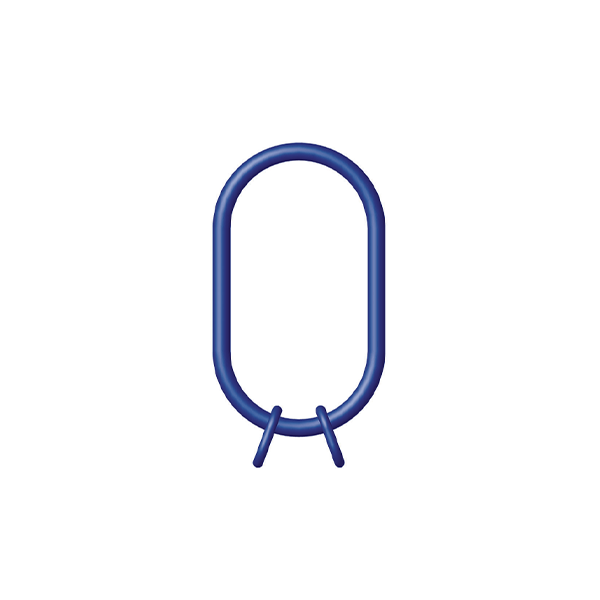

Grade 100 Series DL Multi Leg Assembly- Oversize
Features
- Australian Standard: AS 3776
- Includes standard markings of DXX 10, where XX = link diameter
- Chain Size 8 – 16 mm
- Designed for use in 2,3 or 4-leg assemblies, comprising a master link and two intermediate links, each with the same lifting capacity.
- Available in a blue powder coat finish for easy identification.
Specifications
| Chain Size | WLL | D | P | L | D1 | P1 | L1 | N.W | Part No. | Markings |
| (tonnes) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | ||
| 8 | 4.3 | 27 | 430 | 220 | 19 | 85 | 40 | 6.6 | 42010 | TN26 10 |
| 10 | 6.9 | 33 | 430 | 220 | 19 | 85 | 40 | 9.4 | 42011 | TN32 10 |
| 13 | 11.6 | 40 | 430 | 220 | 27 | 140 | 65 | 16.1 | 42012 | TN40 10 |
| 16 | 17.3 | 45 | 430 | 220 | 27 | 140 | 65 | 19.6 | 42013 | TN45 10 |
Applications
Chain slings
