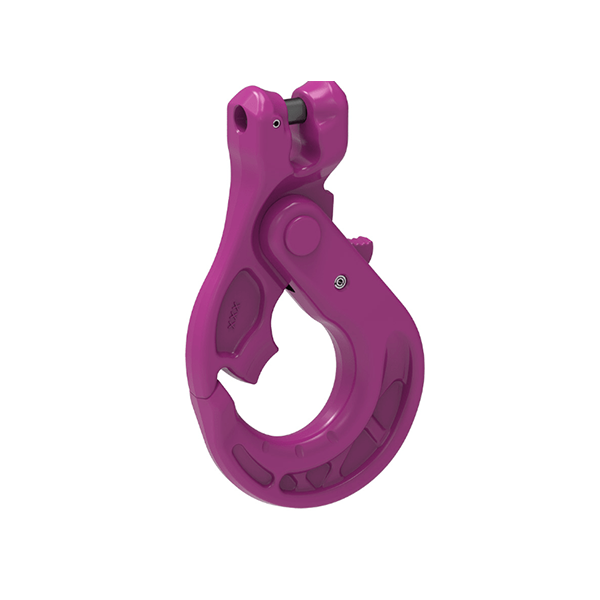

Grade 120 ICE-Self locking hook for skip dumpers
Features
- 2 Options Available IMAGH-10 Nominal WLL 5000 kg & IMAGH-13 Nominal WLL 8000 kg
- Under applied load, the hook closes automatically and can only be opened, if not under load, by operating the protected trigger at the back of the hook.
- There is no protruding hook tip and it is manufactured according to DIN EN 1677-3.
- Connecting bolt and tension sleeve are pre-assembled.

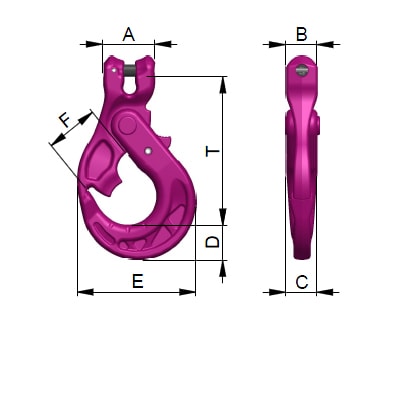

Specifications - IMAGH-10
| Attribute | Value | Value |
|---|---|---|
| Weight | 2.87 kg | 6.33 lbs |
| Nominal WLL | 5000 kg | 11000 lbs |
| T | 171 mm | 6-3/4″ |
| A | 61 mm | 2-13/32″ |
| B | 37 mm | 1-7/16″ |
| C | 36 mm | 1-27/64″ |
| D | 40 mm | 1-9/16″ |
| E | 137 mm | 5-3/8″ |
| F | 50 mm | 1-31/32″ |
Specifications IMAGH-13
| Attribute | Value | Value |
|---|---|---|
| Weight | 3.59 kg | 7.91 lbs |
| Nominal WLL | 8000 kg | 17600 lbs |
| T | 167 mm | 6-19/32″ |
| A | 70 mm | 2-3/4″ |
| B | 37 mm | 1-7/16″ |
| C | 40 mm | 1-9/16″ |
| D | 40 mm | 1-9/16″ |
| E | 140 mm | 5-1/2″ |
| F | 50 mm | 1-31/32″ |
Applications
Robust designed ICE-Automatic – Clevis hook for containers and waste management vehicles.
Owing to it´s special design, waste management vehicles with the respective suspension points according to DIN 30720 can be safely hooked in.
