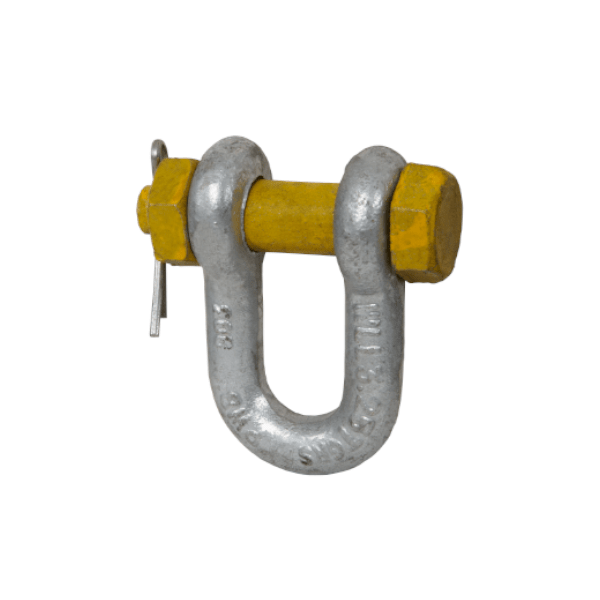

Grade S Dee Safety Pin Shackle

Standard Compliance: Conforms to AS2741, manufactured from Grade S material in dee configuration with safety pin, hot-dipped galvanised.
Identification Markings: Marked with working load limit (in tonnes), quality grade, batch number, nominal size (in mm), and supplier identification.
Strength & Testing:
- Proof tested to 2× working load limit
- Minimum break force of 6× working load limit
Certification: Test certificates available upon request.
Application: Suitable for lifting applications.

Specifications

CODE	WIL (T)	Wt. (kg)	A (mm)	B (mm)	C (mm)	F (mm)	G (mm)
DSS2T	2	0.36	21	16	13	33	41
DSS3.2T	3.2	0.76	27	19	16	40	51
DSS4.7T	4.7	1.23	32	22	19	48	60
DSS6.5T	6.5	1.79	37	25	22	54	71
DSS8.5T	8.5	2.78	43	29	25	60	81
DSS9.5T	9.5	3.75	46	32	29	67	90
DSS12T	12	5.31	52	35	32	76	100
DSS13.5T	13.5	6.98	57	38	35	84	113
DSS17T	17	9.44	60	44	38	92	124
DSS25T	25	14.1	73	51	44	110	146
DSS25T	35	23.71	83	57	51	127	171
DSS42.5T	42.5	29.01	95	63	57	143	181
DS55T	55	40.86	105	70	63	152	203
