Heavy Duty Round Slings
Features
- Up to 8,000 kg
- Up to four times the wear
- Variable load bearing point for more even wear
- Ideal for choke lifting cylindrical objects without creasing
- Less creasing means less wear
- WLL data woven into sleeve for unmistakable capacity identification
- 40% thicker sleeve for durability
- Raised ribs for greater wear and cut resistance
- 20% narrower than standard round slings for easy hook interface
- Lifts smooth objects without damage
- Lightweight and soft – reduced manual handling injuries
- High strength to weight ratio
- Load bearing fibres protected by the outer sleeve
- Wide choice of lifting modes
- Tuff Tag, webbing reinforced encapsulated compliance labels
- Certified to AS4497
Specifications

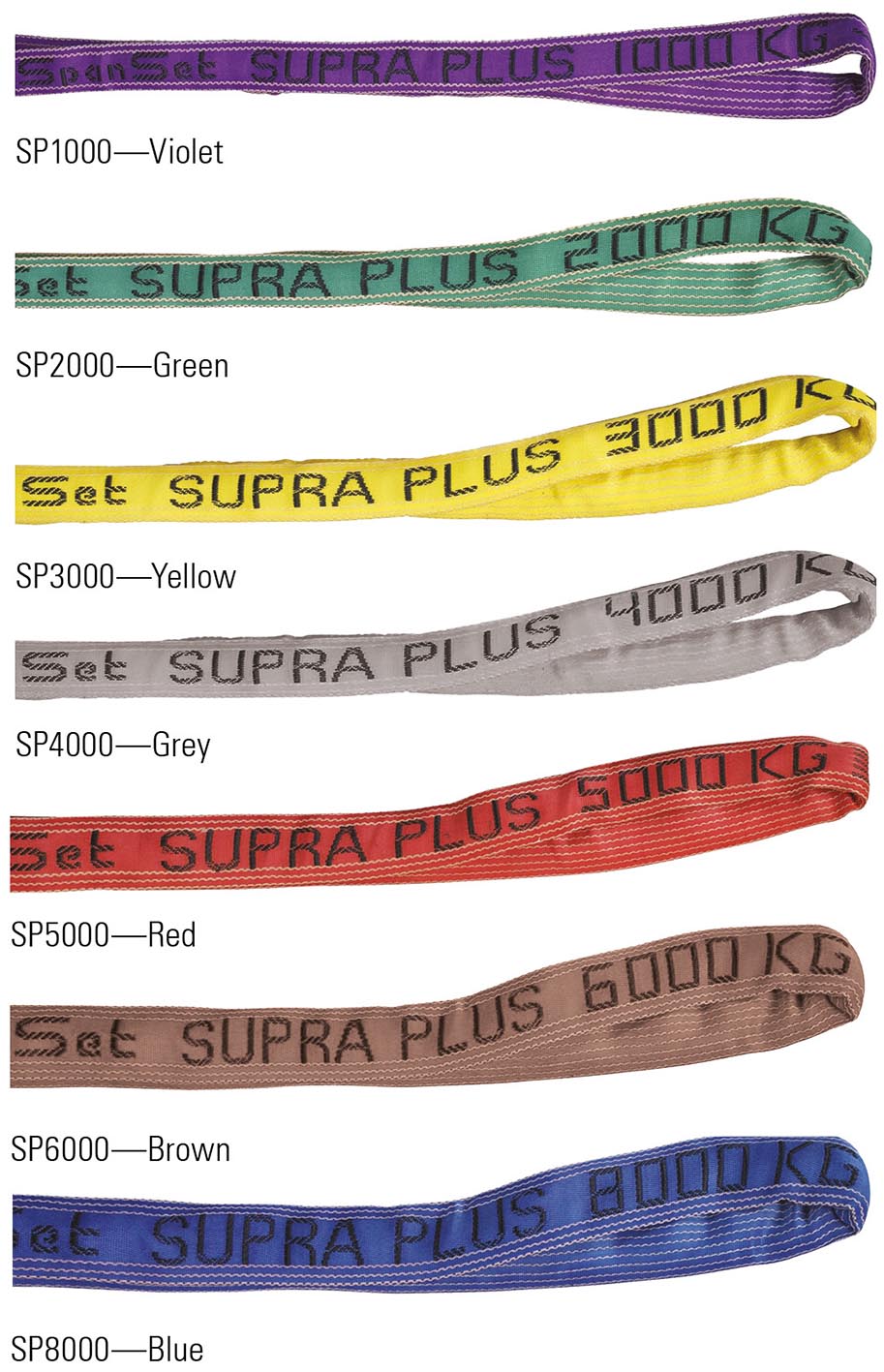

Colour/ Code | Rated WLL (kg) | Thickness Under Load (mm. approx) | Width Under Load (mm. approx) | Minimum load Edge Radius (mm. approx) | Minimum Load Edge Diameter with secutex Sleeve | Maximum Length (metres) |
Maximum Length (metres) |
Weight per Metre |
SP1000 | 1000 | 6 | 36 | 18 | N/A | 60 | 1.0 | 0.35 |
SP2000 | 2000 | 8 | 37 | 24 | N/A | 60 | 1.0 | 0.50 |
SP3000 | 3000 | 10 | 44 | 30 | N/A | 60 | 1.0 | 0.60 |
SP4000 | 4000 | 12 | 52 | 36 | N/A | 60 | 1.0 | 0.90 |
SP5000 | 5000 | 13 | 59 | 39 | N/A | 60 | 1.0 | 1.00 |
SP6000 | 6000 | 14 | 65 | 42 | N/A | 60 | 1.0 | 1.30 |
SP8000 | 8000 | 17 | 68 | 51 | N/A | 60 | 1.0 | 1.70 |
Colour/ Code | Rated WLL (kg) |
1 metre | 2 metre | 3 metre | 4 metre | 5 metre | 6 metre | 8 metre |
SP1000 | 1000 | SP1000-0x1.0 | SP1000-0x2.0 | SP1000-0x3.0 | SP1000-0x4.0 | SP1000-0x5.0 | SP1000-0x6.0 | SP1000-0x8.0 |
SP2000 | 2000 | SP2000-0x1.0 | SP2000-0x2.0 | SP2000-0x3.0 | SP2000-0x4.0 | SP2000-0x5.0 | SP2000-0x6.0 | SP2000-0x8.0 |
SP3000 | 3000 | SP3000-0x1.0 | SP3000-0x2.0 | SP3000-0x3.0 | SP3000-0x4.0 | SP3000-0x5.0 | SP3000-0x6.0 | SP3000-0x8.0 |
SP4000 | 4000 | SP4000-0x1.0 | SP4000-0x2.0 | SP4000-0x3.0 | SP4000-0x4.0 | SP4000-0x5.0 | SP4000-0x6.0 | SP4000-0x8.0 |
SP5000 | 5000 | SP5000-0x1.0 | SP5000-0x2.0 | SP5000-0x3.0 | SP5000-0x4.0 | SP5000-0x5.0 | SP5000-0x6.0 | SP5000-0x8.0 |
SP6000 | 6000 | SP6000-0x1.0 | SP6000-0x2.0 | SP6000-0x3.0 | SP6000-0x4.0 | SP6000-0x5.0 | SP6000-0x6.0 | SP6000-0x8.0 |
SP8000 | 8000 | SP8000-0x1.0 | SP8000-0x2.0 | SP8000-0x3.0 | SP8000-0x4.0 | SP8000-0x5.0 | SP8000-0x6.0 | SP8000-0x8.0 |
Colour/ Code | secutex Code Single Sided | Interior Width (mm) | Exterior Width (mm) | Exterior Height | Weight Per Run Metre |
SP1000 | SF1-50 | 50 | 70 | 22 | 0.9 |
SP2000 | SF1-75 | 75 | 95 | 22 | 1.3 |
SP3000 | SF1-100 | 100 | 120 | 22 | 1.5 |
SP4000 | SF1-150 | 140 | 160 | 22 | 2.1 |
SP5000 | SF1-150 | 150 | 170 | 22 | 2.1 |
SP6000 | SF1-200 | 180 | 200 | 35 | 2.7 |
SP8000 | SF1-250 | 240 | 260 | 35 | 3.2 |
Colour/ Code | secutex Code Double Sided | Interior Width (mm) | Exterior Width (mm) | Exterior Height | Weight Per Run Metre |
SP1000 | SF2-50 | 50 | 70 | 70 | 1.2 |
SP2000 | SF2-75 | 75 | 95 | 95 | 1.8 |
SP3000 | SF2-100 | 100 | 120 | 120 | 2.1 |
SP4000 | SF2-150 | 140 | 160 | 160 | 3.0 |
SP5000 | SF2-150 | 150 | 170 | 170 | 3.0 |
SP6000 | SF2-200 | 180 | 200 | 35 | 3.3 |
SP8000 | SF2-250 | 240 | 260 | 35 | 4.2 |
Colour/ Code | secutex Code Clip-On | Interior Width (mm) | Exterior Width (mm) | Exterior Height | Weight Per Run Metre |
SP1000 | SC-50 | 50 | 70 | 70 | 1.1 |
SP2000 | SC-75 | 75 | 95 | 95 | 1.6 |
SP3000 | SC-100 | 100 | 120 | 120 | 1.8 |
SP4000 | SC-150 | 140 | 160 | 160 | 2.6 |
SP5000 | SC-150 | 150 | 170 | 170 | 2.6 |
SP6000 | SC-200 | 180 | 200 | 35 | 3.3 |
SP8000 | SC-250 | 240 | 260 | 35 | 4.2 |
