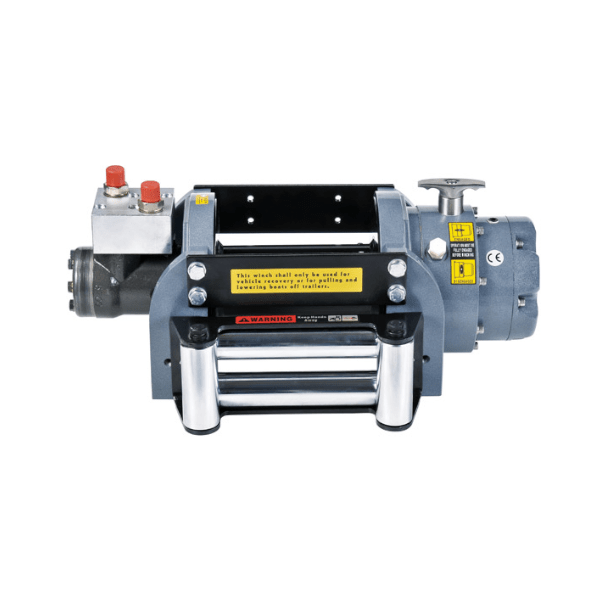

Hydraulic Recovery winch

Features

  • Highly efficient and constant operating high torque motor.
  • Fast and variable recovery speeds for high work rate.
  • Two stage planetary gear train for greater pulling force.
  • Free spool T-handle with easy operation for rapid wire rope payout.
  • Drag brake and over-center valve providing full 100% braking.
  • European Standard EN14492-1 compliant; meets SAE J706, CE Machinery Directive 2006/42/EC and REMSA Standards.
  • 10:1 D/d ratio and 2:1 wire rope strength allow severe duty vehicles and commercial recovery.
  • Highly efficient pulling device, NOT recommended for lifting applications.
  • Higher capacities available
  • Wire rope not included.



Specifications

MODEL HV8 HV10 HV12 HV15
Stock Code PHV090 PHV100 PHV120 PHV150
Line Pull (kg) 3630 4535 5440 6800
Line Speed (m/min) 15 14 10 9
Operating Pressure (Bar) 150 150 150 150
Wire Rope (Ø mmxm) 11.1 x 27
(not included)
12 x 34
(not included)
14 x 27
(not included)
16 x 24
(not included)
Winch Construction Aluminum die cast housing with steel drum Aluminum die cast housing with steel drum Aluminum die cast housing with steel drum Aluminum die cast housing with steel drum
Drum Size Std (mmxmm) 90 x 190 102 x 253 114 x 255 127 x 255
Gear Ratio 16 : 1 16 : 1 19.4 : 1 19.4 : 1
Net Weight (kg) 43.3 46.6 87 88

Applications

Hydraulic Recovery Winches feature supreme power and reliability to handle the most demanding situations. They are designed for heavy duty applications on car transporters, tilt-tray vehicles, tractors, trucks and fire / rescue vehicles and have the ability to run continuously in every condition.
