PRO 4 Davits
Features

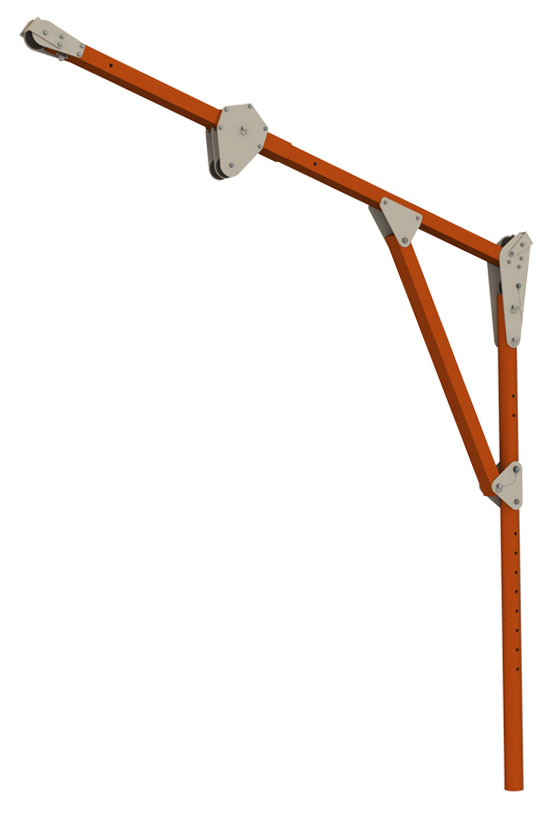

PRO-4 Series Analogue Collapsible Davits
are appropriate for exceptional applications where a standard height and range davit is unsuitable. Available with a height up-to 2.8m and an offset reach of 2.0m. Ideal for use in rescue recovery and as an abseil diversion davit.
- When installed and used as per the manufacturer’s instructions this davit is part of a complete personal fall arrest system maintaining a minimum safety factor of 2:1.
- PRO-4 Series Davits also fold up for ease of transport and storage.
- Multi-adjustable reach & off set.
- Rotates full 360 degrees.
- Internal overload indicator
- Custom off set and heights available.
- Compatible with permanent davit bases.
Specifications
Specifications
Ultimate Strength Rating: | 12 kN |
Capacity: Maximum number of users: | 1 |
Allowable MAF Rating for SRL’s: | 4kN |
PRO-4 DAVITS | ||||
Part No. | Model Description | Reach (m) | Height (m) | Winch / Anchor |
50048 | PRO-4 Series Collapsible Analogue Davit | 2.0 | 2.8 | Rear Mount |
