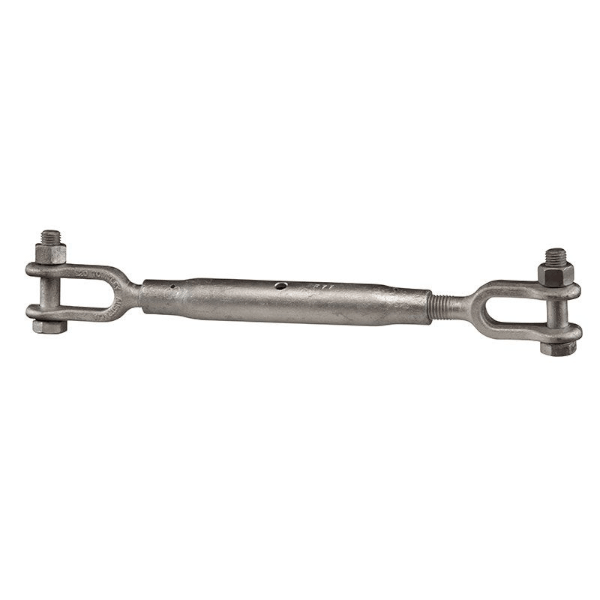

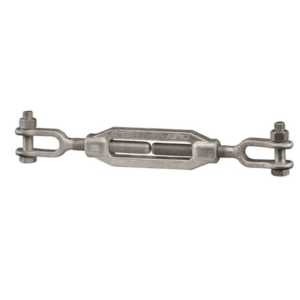

Rigging Screws Clevis & Clevis are designed and manufactured to the below standards and features.
- AS2319-2001
- 6:1 Safety Factor
- Grades L, P & S
- Tested and Certified
- Galvanized
- Manufactured using only heat certified Australian Steel (AS1442/AS1444)
Additional information
WLL | 0.3, 0.5, 0.75, 1.25, 2.5, 5, 6, 7.5, 10, 15, 20, 0.6, 1, 1.6, 4, 8, 16, 28, 0.8, 1.2, 2, 3.2, 12 |
---|---|
Grade | Grade L, Grade P, Grade S |
Nominal Size | M10, M12, M16, M20, M24, M33, M39, 1.25, 1.5, 1.75, 2, 2.25, 2.5, M48, M64, M48 |
Specifications

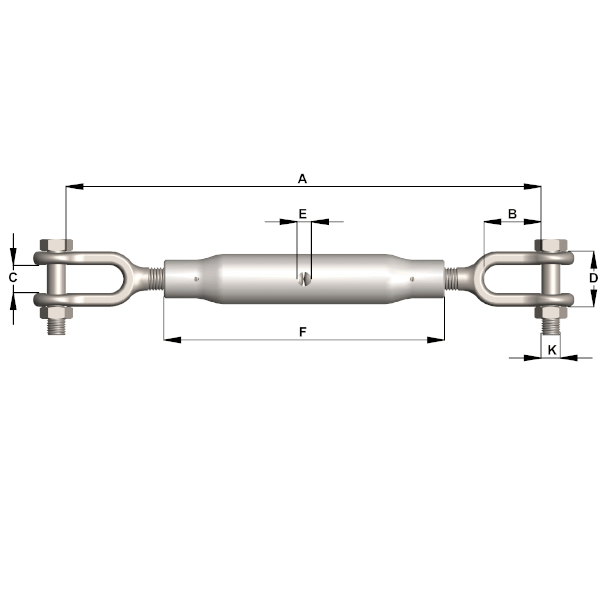

Type | Working Load Limit (t) | Nominal Size | A Closed | A Open | B | C | D | E | F | K | Weight (kg) | Product Code |
Grade L | 0.3 | M10 | 265 | 395 | 30 | 14 | 30 | 8.5 | 180 | 10 | 0.49 | RSCCL10 |
Grade L | 0.5 | M12 | 340 | 525 | 36 | 15 | 35 | 8.5 | 230 | 10 | 0.97 | RSCCL12 |
Grade L | 0.75 | M16 | 360 | 535 | 45 | 20 | 40 | 9 | 230 | 12 | 1.36 | RSCCL16 |
Grade L | 1.25 | M20 | 390 | 555 | 55 | 22 | 46 | 10.5 | 230 | 16 | 2.35 | RSCCL20 |
Grade L | 2.5 | M24 | 555 | 740 | 59 | 30 | 58 | 13 | 360 | 20 | 4.2 | RSCCL24 |
Grade L | 5 | M33 | 628 | 904 | 80 | 38 | 75 | 14 | 380 | 27 | 11.2 | RSCCL33 |
Grade L | 6 | M39 | 692 | 980 | 92 | 51 | 97 | 14 | 410 | 30 | RSCCL39 | |
Grade L | 5 | 1.25 | 610 | 830 | 63 | 38 | N/A | 14 | 380 | 25 | 8.11 | RSCCL1250 |
Grade L | 6 | 1.5 | 660 | 890 | 82 | 48 | N/A | 16 | 405 | 32 | 13.32 | RSCCL1500 |
Grade L | 7.5 | 1.75 | 690 | 920 | 93 | 50 | N/A | 17 | 405 | 35 | 18.61 | RSCCL1750 |
Grade L | 10 | 2 | 762 | 997 | 99 | 60 | N/A | 19 | 405 | 41 | 31.58 | RSCCL2000 |
Grade L | 15 | 2.25 | 819 | 1029 | 115 | 60 | N/A | 22 | 405 | 47 | 32 | RSCCL2250 |
Grade L | 20 | 2.5 | 838 | 1035 | 115 | 70 | N/A | 22 | 405 | 51 | 46.38 | RSCCL2500 |
Grade P | 0.6 | M10 | 265 | 395 | 30 | 14 | 30 | 8.5 | 180 | 10 | 0.49 | RSCC10P |
Grade P | 1 | M12 | 340 | 525 | 36 | 15 | 35 | 8.5 | 230 | 10 | 0.97 | RSCC12P |
Grade P | 1.6 | M16 | 360 | 535 | 45 | 20 | 40 | 9 | 230 | 12 | 1.36 | RSCC16P |
Grade P | 2.5 | M20 | 390 | 555 | 55 | 22 | 46 | 10.5 | 230 | 16 | 2.35 | RSCC20P |
Grade P | 4 | M24 | 555 | 740 | 59 | 30 | 58 | 13 | 360 | 20 | 4.2 | RSCC24P |
Grade P | 8 | M33 | 628 | 904 | 80 | 38 | 75 | 14 | 380 | 27 | 11.2 | RSCC33P |
Grade P | 10 | M39 | 692 | 980 | 92 | 51 | 97 | 14 | 410 | 30 | RSCC39P | |
Grade P | 16 | M48 | 755 | 989 | 109 | 54 | 110 | 18 | 420 | 42 | 32 | RSCC48P |
Grade P | 28 | M64 | 740 | 960 | 105 | 70 | 152 | 22 | 410 | 56 | 62.2 | RSCC64P |
Grade S | 0.8 | M10 | 265 | 395 | 30 | 14 | 30 | 8.5 | 180 | 10 | 0.49 | RSCC10S |
Grade S | 1.2 | M12 | 340 | 525 | 36 | 15 | 35 | 8.5 | 230 | 10 | 0.97 | RSCC12S |
Grade S | 2 | M16 | 360 | 535 | 45 | 20 | 40 | 9 | 230 | 12 | 1.36 | RSCC16S |
Grade S | 3.2 | M20 | 390 | 555 | 55 | 22 | 46 | 10.5 | 230 | 16 | 2.35 | RSCC20S |
Grade S | 5 | M24 | 555 | 740 | 59 | 30 | 58 | 13 | 360 | 20 | 4.2 | RSCC24S |
Grade S | 10 | M33 | 628 | 904 | 80 | 38 | 75 | 14 | 380 | 27 | 11.2 | RSCC33S |
Grade 7 | 12 | M39 | 692 | 980 | 92 | 51 | 97 | 14 | 410 | 30 | RSCC39S | |
Grade S | 20 | M48 | 755 | 989 | 109 | 54 | 110 | 18 | 420 | 42 | 32 | RSCC48S |
