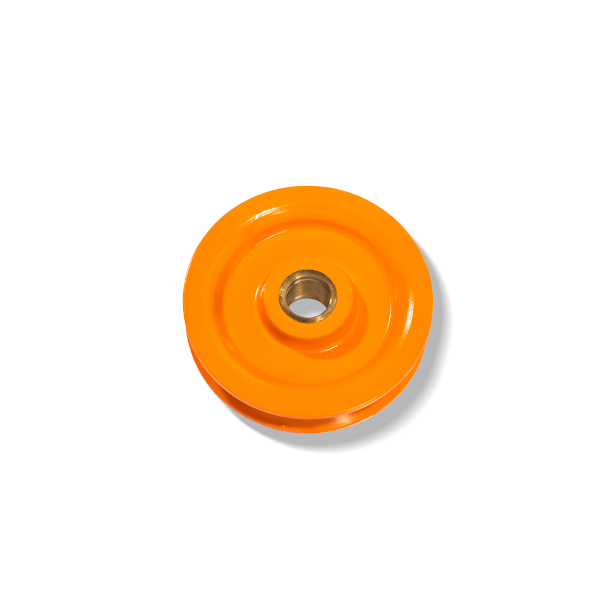

Sheave Wire Rope
Features
Fully interchangeable sheaves
Specifications

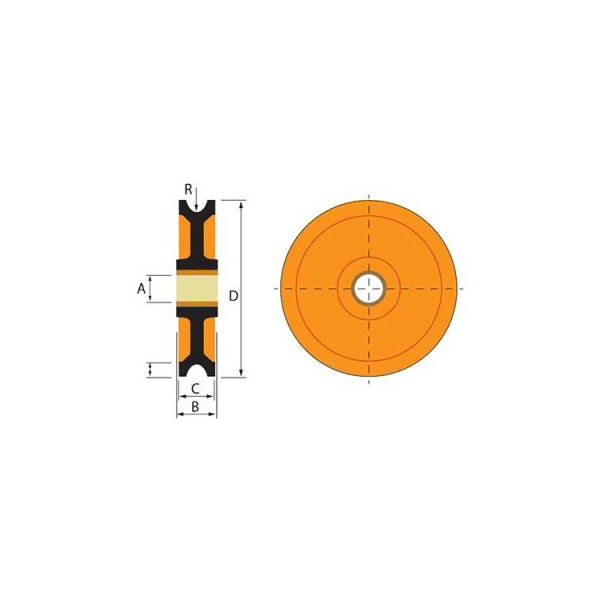

| Sheave Dia. D (mm) |
Part No. | A (mm) |
B (mm) |
C (mm) |
E (mm) |
Rope dia. R (mm) |
| 63 | 45589 | 12.5 | 20.5 | 19.5 | 4.8 | 5 |
| 75 | 45591 | 12.5 | 20.5 | 19.5 | 6.4 | 6 |
| 100 | 45595 | 19 | 24.5 | 23 | 8 | 8 |
| 125 | 45599 | 22 | 29.5 | 27 | 11 | 10 |
| 150 | 45601 | 25 | 32 | 30 | 12.7 | 12 |
| 200 | 45605 | 35 | 46 | 44 | 16 | 16 |
