Trawl Blocks with Swivel Eye Bronze bushed
Features
- Manufactured with the highest quality steel available.
- Corrosive resisteant for increased block life in a salt water environment.
- Sealed bearings for increased life span and performance.

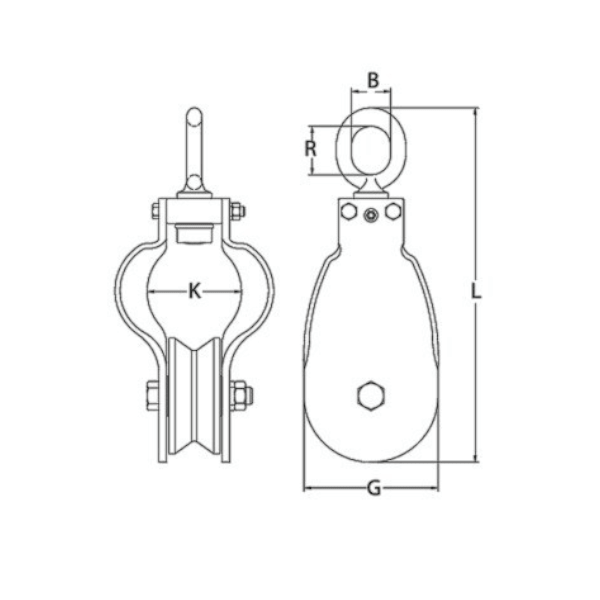

Specifications
| Part No. | Supplier Part No. |
WLL (tonnes) |
Sheave Dimension (inch) |
Rim Thickness |
B (mm) |
R (mm) |
G (mm) |
L (mm) |
N.W (Kg) |
| 46736 | 8-522-05 | 5 | 6 | 2 3/4 | 50 | 63 | 172 | 460 | 14.2 |
Applications
Used in marine, agricultural and general industrial.
