Turnbuckle Hook & Eye
Features
- Heavy Duty
- Galvanized
- Manufactured using only heat certified Australian Steel (AS1442/AS1444)
Specifications

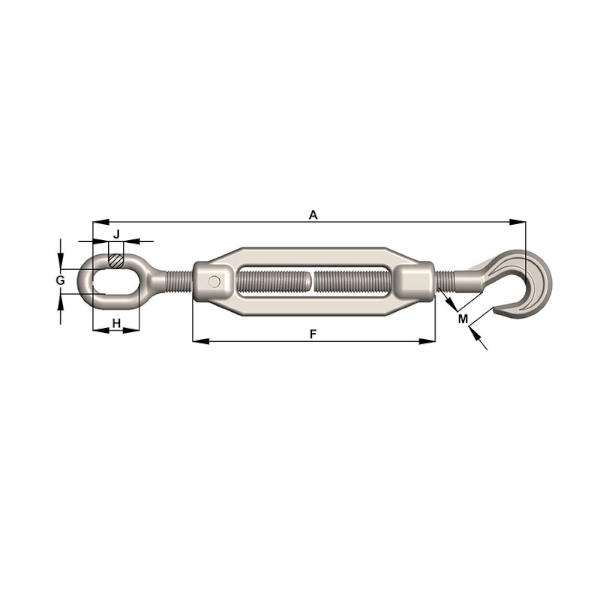

| Type | Working Load Limit (t) | Nominal Size | A Closed | A Open | F | G | H | J | M | Grade | Weight (kg) | Product Code |
| N/A | N/A | M10 | 245 | 345 | 150 | 11 | 21 | 7 | 12 | Heavy Duty | 0.4 | TBHE10 |
| N/A | N/A | M12 | 325 | 465 | 190.5 | 15 | 30 | 9 | 14 | Heavy Duty | 1.05 | TBHE12 |
| N/A | N/A | M16 | 355 | 495 | 204 | 17 | 36 | 12 | 20 | Heavy Duty | 1.3 | TBHE16 |
| N/A | N/A | M20 | 400 | 530 | 216.5 | 21 | 42 | 14 | 23 | Heavy Duty | 2.28 | TBHE20 |
| N/A | N/A | M24 | 445 | 580 | 232 | 25 | 51 | 17 | 25 | Heavy Duty | 3.68 | TBHE24 |
| N/A | N/A | 1.25 | 625 | 780 | 257 | 33 | 65 | 23.5 | 50 | Heavy Duty | 7 | TBHE1250 |
