Vehicle Chain Safety Hook Kit
The Vehicle Chain Safety Hook Kit are available in three sizes, each with different Working Load Limits (WLL), breaking forces, and chain size compatibility, ensuring towing requirements for various Aggregate Trailer Masses (ATM).
Safety Kits are CTA approved
Conforms to AS3776-2015, AS4177.4 & ADR6202
6mm Kit (Code: 103506): Suitable for 8mm Trailer Chain
• Tow Capacity: 2 Ton (ATM - 2T)
• Breaking Force: 4,480kg (4:1 safety factor as per AS3775.2)
• Chain Breaking Strength: 2,406.53kg (8mm as per AS4177)
• Shackle Rating: 500kg WLL, breaking at 2.95t
8mm Kit (Code: 103508): Suitable for 10mm & 13mm Trailer Chain
• Tow Capacity: 4 Ton (ATM - 4T)
• Breaking Force: 8,000kg (4:1 safety factor as per AS3775.2)
• Chain Breaking Strength: 3,762.75kg (10mm as per AS4177) & 5,261.73kg (13mm as per AS4177)
• Shackle Rating: 750kg WLL, breaking at 4.4t
10mm Kit (Code: 103510): Suitable for 13mm Trailer Chain
• Tow Capacity: 6.4 Ton (ATM - 6.4T)
• Breaking Force: 12,800kg (4:1 safety factor as per AS3775.2)
• Chain Breaking Strength: 5,261.73kg (13mm as per AS4177)
• Shackle Rating: Grade 30 trailer chain: 1000kg WLL, breaking at 5.95t
• On 13mm / 16mm Grade 80 or Grade 100 Chain for Trailers: ATM 3500kg to 6400kg
• On standard 13mm Grade 30 Transport Chain: ATM 3000kg to 3500kg
• Tow Capacity: 6.4 Ton (ATM - 6.4T)
• Breaking Force: 12,800kg (4:1 safety factor as per AS3775.2)
• Chain Breaking Strength: 5,261.73kg (13mm as per AS4177)
• Shackle Rating: Grade 30 trailer chain: 1000kg WLL, breaking at 5.95t
• On 13mm / 16mm Grade 80 or Grade 100 Chain for Trailers: ATM 3500kg to 6400kg
• On standard 13mm Grade 30 Transport Chain: ATM 3000kg to 3500kg

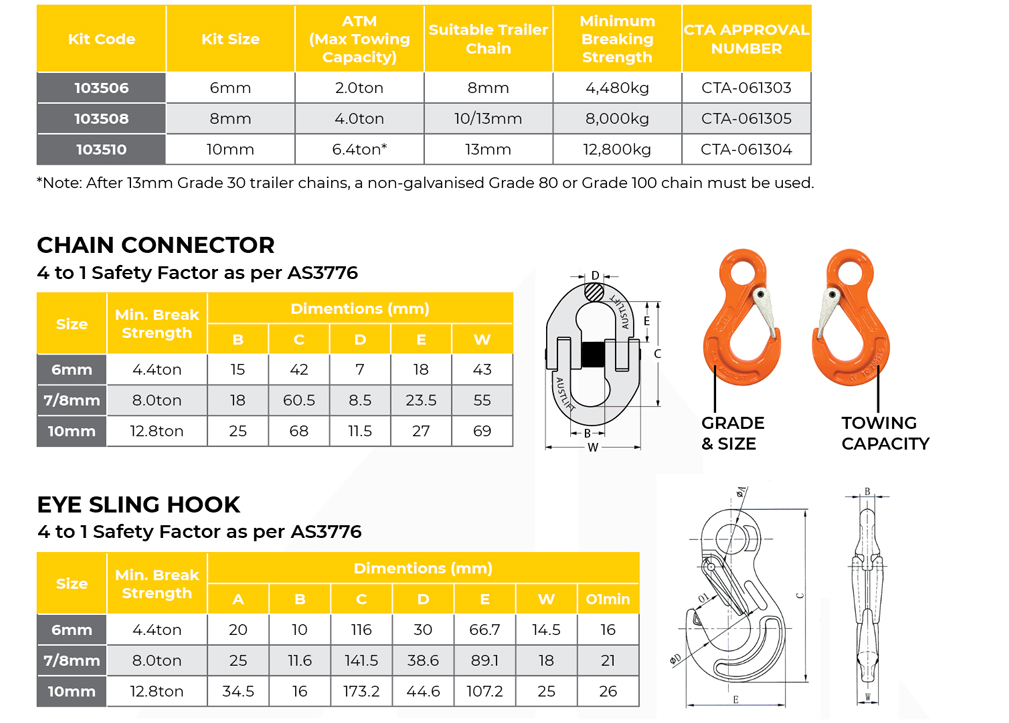

Specifications
