Open Fitting Wedge Socket
Features Wedge Socket
- Manufactured in Australia
- Cast Alloy Steel
- Available for rope sizes 8mm – 38mm
- 100% Magnetic particle inspected in accordance with AS1171
- Ultrasonically tested in accordance with AS2574
- Manufactured to meet the performance requirements of AS1666 Wire Rope Slings
Surface finish options include:
- Black self colour
- Galvanized
- Painted

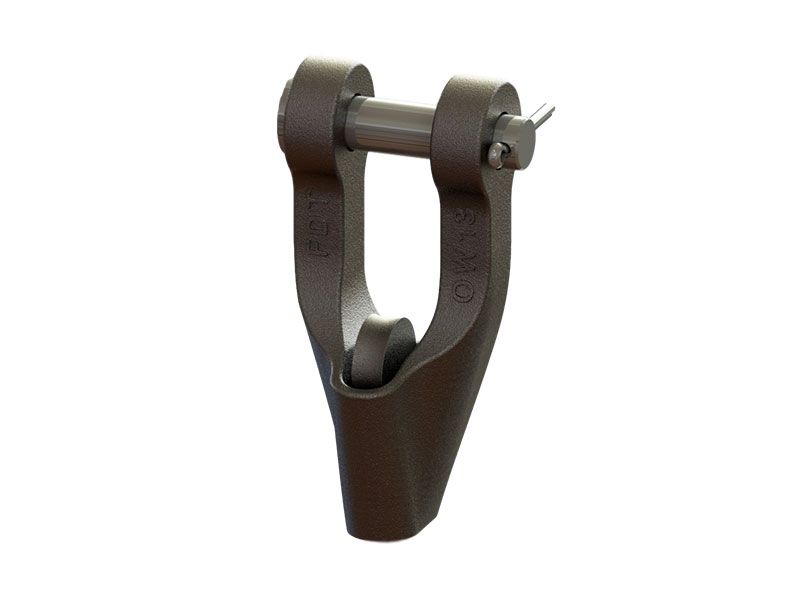

Open wedge socket is fitted to a wire rope. The nominal diameter of the wire rope shall be equal to the nominal size of the socket. The loaded end of the rope shall enter the socket body so that when loaded it will not bend where it leaves the socket body. Suitable for rope termination such as crane rope applications.
View our full range of wire rope and fittings.
