Wide Mouth Green Pin Shackle
Wide Mouth Green Pin Shackle
The wide mouth shackle enables you to connect the shackle to a connecting point (e.g. a pad eye) which is wider than usual.
Available range with a working load limit from 4.75 up to 75 ton.
View our full range of Shackles

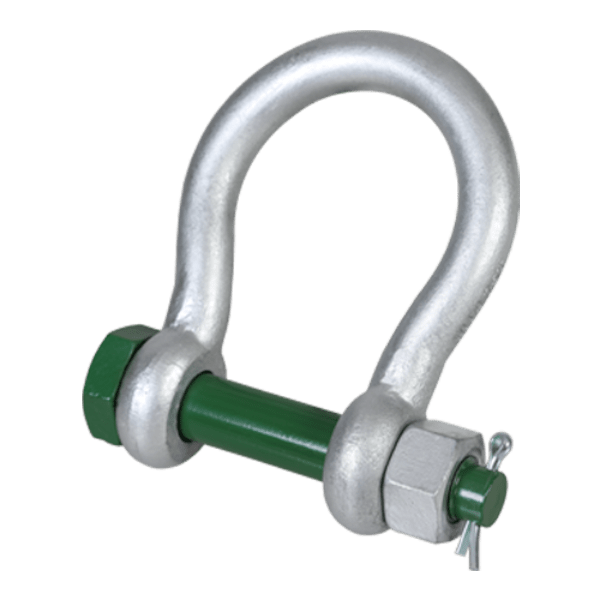

Wide Mouth Green Pin Shackle
The Wide Mouth Green Pin Shackle is designed with a safety bolt and a wider shackle mouth.
The wider shackle mouth enables you to connect the shackle to a connecting point (e.g. a pad eye) which is wider than usual.
The shackle also offers a double safety (split pin and safety bolt) which prevents accidental unscrewing of the pin.
Long-term durability is assured due to the galvanization of the Green Pin
The shackle is suitable for both one-leg and multi-leg systems and is available in a range with a working load limit from 4.75 up to 75 ton.<br>

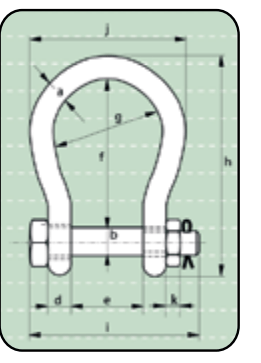

Specifications
| Product no. | WLL 6:1 | A | B | C | D | E | F | G | H | I | J | K | Weight | ||
| Ton | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg/each | |||
| FHWMO22 | 4.75 | 22 | 25 | 52 | 22 | 63 | 112 | 88 | 173 | 157 | 132 | 23 | 2.08 | ||
| FHWMO25 | 6.5 | 25 | 28 | 59 | 25 | 75 | 135 | 105 | 204 | 182 | 155 | 25 | 3.14 | ||
| FHWMO28 | 8.5 | 28 | 32 | 66 | 28 | 82 | 148 | 115 | 225 | 201 | 171 | 28 | 4.36 | ||
| FHWMO32 | 9.5 | 32 | 35 | 72 | 32 | 90 | 162 | 126 | 248 | 217 | 190 | 31 | 5.95 | ||
| FHWMO35 | 12 | 35 | 38 | 79 | 35 | 100 | 180 | 140 | 274 | 240 | 210 | 34 | 7.87 | ||
| FHWMO38 | 16 | 38 | 42 | 88 | 38 | 106 | 216 | 159 | 319 | 248 | 235 | 19 | 12.5 | ||
| FHWMO45 | 25 | 45 | 50 | 103 | 45 | 127 | 248 | 175 | 370 | 296 | 265 | 24 | 18 | ||
| FHWMO50 | 30 | 50 | 57 | 118 | 50 | 146 | 273 | 207 | 411 | 338 | 307 | 27 | 25 | ||
| FHWMO65 | 55 | 65 | 70 | 145 | 65 | 165 | 314 | 213 | 487 | 389 | 343 | 33 | 45 | ||
| FHWMO75 | 75 | 75 | 83 | 166 | 75 | 184 | 330 | 254 | 530 | 432 | 404 | 40 | 70 | ||
