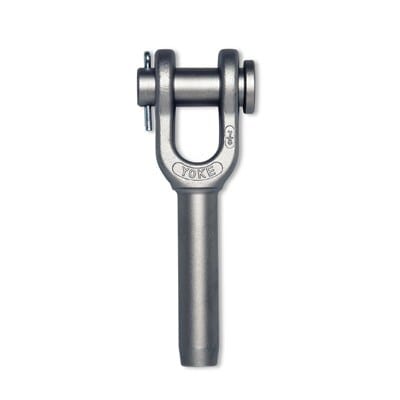

Wire Rope Fitting Forged Open Swage Socket with Round Pin

Features

Forged from special, bar quality steel with hardness controlled, spheroidize annealing.
When properly applied these fittings have an efficiency rating of 100% based on the catalogue strength of wire rope.
Recommended for use with 6 x 19, 6 x 37, IWRC wire rope and galvanised bridge rope.
Not recommended for use on fibre core or langs lay rope.

Call Us: 07 3205 7000

Specifications
Applications

Specifications

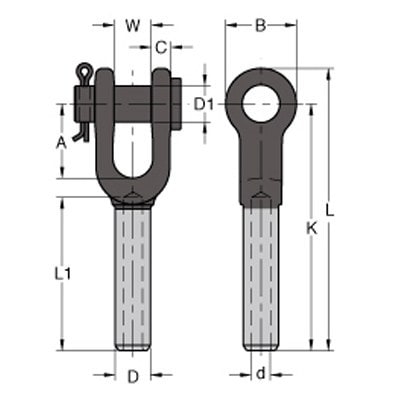

Rope Size (mm)	L	D	B	D1	d	L1	W	K	C	A	Mas After Swage Dia (mm)	N.W (kg)	Part No. (Self Colour)	Part No. (Galvanised)
6-7	122	13	35	18	7	55	17	102	9	38	12	0.3	46812	46796*
8	159	20	42	21	9	80	20	135	12	45	18	0.6	46813	46797*
9-10	159	20	42	21	10	80	20	135	12	45	18	0.6	46814	46798
11-12	199	25	50	25	12	110	25	174	14	50	23	1.2	46818	46799*
13	199	25	50	25	14	110	25	174	14	50	23	0.9	46819	46800*
14-15	240	32	60	30	16	135	31	210	17	70	30	2.1	46820	46801*
16	240	32	60	30	17	135	31	210	17	57	30	2.1	46821	46802
18-20	295	39	70	35	21	161	38	256	20	70	36	3.8	46822	46803
22-23	340	43	80	41	24	189	45	300	24	82	40	5.4	46823	46804*
24-25	395	50	100	51	27	216	50	345	26	98	46	8.8	46824	46805
28	442	57	103	57	30	238	57	383	30	108	52	12.6	46826	46806
32	484	64	113	64	34	269	63	419	34	120	59	17.2	46827	46807
35-36	534	71	127	64	37	297	64	463	35	132	65	21.8	46828	46808*
38	581	78	140	70	41	315	76	502	43	146	72	28.9	46829	46809*
44-45	674	86	170	89	47	378	89	584	54	171	78	44.0	46830	46810*
48-51	798	100	203	95	54	431	101	682	60	203	91	73.1	46831	46811*
