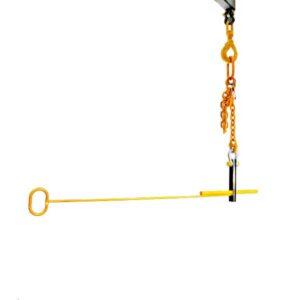

ALS Pipe Lifter
Engineered and made in Australia, by Absolute Lifting and Safety in Brisbane, the ALS Pipe Lifter is designed to lift heavy concrete pipes used for underground infrastructure, including storm drainage, sanitary sewers, culverts under roads and railways, and irrigation systems.
This durable Australian made product is designed with options to fit both round and rectangular pipe lifting holes, and the pipe lifting spear can be used for either the round or rectangular pipe lifting bar.
The pipe lifting bar comes in 3 sizes with lifting capacities of 3, 5 and 6.5 tonnes. (6.5 Tonne option available soon)
SPECIFICATIONS
| Pipe Lifter Model | Part Number | WLL | Components |
|---|---|---|---|
| 3T Rectangle Pipe Lifter Assembly
|
PL3T-RT-ASSY | 3,000KG | Pipe Lifting Bar 23mm Universal Rod G80 10mm Head Ring G80 10mm Hammerlock G80 10mm Shortner G80 10mm 1m Chain Safety Pin Bow Shackle 4.7T |
| 5T Rectangle Pipe Lifter Assembly
|
PL5T-RT-ASSY | 5,000KG | Pipe Lifting Bar 33mm Universal Rod G80 13mm Head Ring G80 13mm Hammerlock G80 13mm Shortner G80 13mm 1m Chain Safety Pin Bow Shackle 6.5T |
5T Round Pipe Lifter Assembly |
PL5T-RD-ASSY | 5,000KG | Pipe Lifting Bar 47mm Diameter Universal Rod G80 13mm Head Ring G80 13mm Hammerlock G80 13mm Shortner G80 13mm 1m Chain Safety Pin Bow Shackle 6.5T |
SPARE PARTS
| Description | Image | Part Number |
|---|---|---|
| 3T Rectangle Pipe Lifter Bar |  |
PL3T-RT-BAR |
| 5T Rectangle Pipe Lifter Bar |  |
PL5T-RT-BAR |
| 5T Round Pipe Lifter Bar |  |
PL5T-RD-BAR |
| Pipe Lifter Spear |  |
PL-SPEAR |
