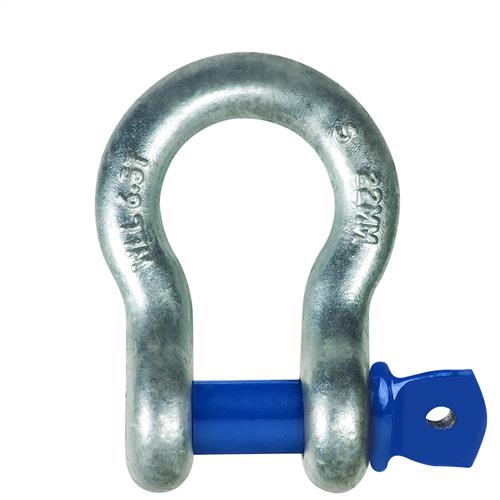

Grade S Screw Pin Bow Shackle

View our full range of shackles.

Specifications

SIZE (mm)	CODE	WLL (T)	Wt. (kg)	B	D	d	E	L	W
6	BS0.5T	0.5	0.05	20	8	6	17	29	12
8	BS0.75T	0.75	0.09	21	10	8	21	31	13
10	BS1T	1	0.14	26	11	10	25	37	17
11	BS1.5T	1.5	0.17	29	13	11	27	43	18
13	BS2T	2	0.29	33	16	13	33	48	21
16	BS3.2T	3.2	0.63	43	19	16	40	61	27
19	BS4.7T	4.7	1.02	51	22	19	48	72	32
22	BS6.5T	6.5	1.53	58	25	22	54	84	37
25	BS8.5T	8.5	2.41	68	29	25	60	95	43
29	BS9.5T	9.5	3.09	74	32	29	67	108	46
32	BS12T	12	4.31	83	35	32	76	119	52
35	BS13.5T	13.5	6.01	92	38	35	84	133	57
38	BS17T	17	8.03	98	44	38	92	146	60
44	BS25T	25	13.79	127	51	44	110	178	73
51	BS35T	35	20.42	146	57	51	127	197	83
57	BS42.5T	42.5	26.06	160	63	57	143	222	95
63	BS55T	55	38.8	184	70	63	152	267	105
